A customer calls at 7am: “The boiler’s on the blink again – pressure’s dropped overnight and there’s no heating.” You’ve been there. By the time you arrive, they’ve already topped it up twice this month. No obvious puddles, no wet patches under the rads, yet the gauge keeps creeping down.
This pattern shows up repeatedly on jobs across the UK, especially as systems head into another heating season. Engineers on trade discussions and in the field consistently report the same frustration: repressurising fixes it short-term, but the drop returns, eating into your day and the customer’s patience.
Most Common Causes
The majority of recurring low pressure cases trace back to water escaping the sealed system.
- Small, often hidden leaks top the list. These frequently appear at radiator valves (especially older TRVs or lockshield valves that have seen years of operation), joints in pipework buried in floors or walls, or subtle weeping from compression fittings that have worked loose over time. A drip so small it evaporates before you notice can still drop system pressure noticeably over days.
- Recently bled radiators is the next frequent trigger. Homeowners (or sometimes engineers under time pressure) bleed air from cold spots and forget to repressurise properly, or lose a small amount of water in the process. This one is straightforward but easy to overlook on a busy day.
Less Common but Important Causes
- Faulty pressure relief valve (PRV). When the PRV seats imperfectly — often after being triggered by a previous over-pressure event or due to scale/debris — it drips slowly. This shows up as gradual loss, sometimes more noticeable when the system is cold. It’s a safety component, so a leaking PRV needs proper replacement rather than a temporary fix.
- Expansion vessel issues. The diaphragm inside the vessel (usually the red or black tank on or in the boiler) loses its pre-charge over years. When it waterlogs or fails, the system can’t handle normal expansion and contraction. Pressure rises when hot, then drops sharply as it cools — a classic overnight or between-calls pattern.
Rare but Worth Ruling Out
- Internal boiler leaks, such as from the heat exchanger or pump seals (more common on higher-mileage combis).
- Automatic air vents passing water instead of just air.
- In older open-vented systems, issues with the feed and expansion tank (though most modern UK installs are sealed).
One realistic observation from repeated site work: the drop is often worse in properties with older radiator valves or systems that haven’t had a proper power flush and inhibitor top-up in years. Quick repressurising under time pressure masks the root cause and leads to repeat visits.
Real-World Example
Take a typical 15-year-old semi-detached in a Midlands new-build estate with a combi boiler. The homeowner reports having to top up the pressure every 7–10 days, especially after the heating comes on in the evening. No visible leaks, but the pressure gauge sits at 0.8 bar cold and the boiler locks out.
On inspection, the PRV shows faint signs of past discharge, but the real culprit is the expansion vessel with zero pre-charge. After repressurising the vessel to the correct cold pressure (usually 0.75–1 bar, matching the system), the pressure stabilises between 1–1.5 bar cold and holds steady through heating cycles. Total job time: under an hour once diagnosed correctly, versus multiple call-outs.
What This Means on Site
Repeated pressure loss wastes your time on avoidable re-visits, increases parts and labour costs for the customer, and damages trust — especially when they’ve already tried “fixing it themselves.” In winter peaks, these jobs stack up and disrupt your schedule. Customers perceive it as unreliable heating, even if the boiler itself is mechanically sound.
Practical Diagnostic Approach

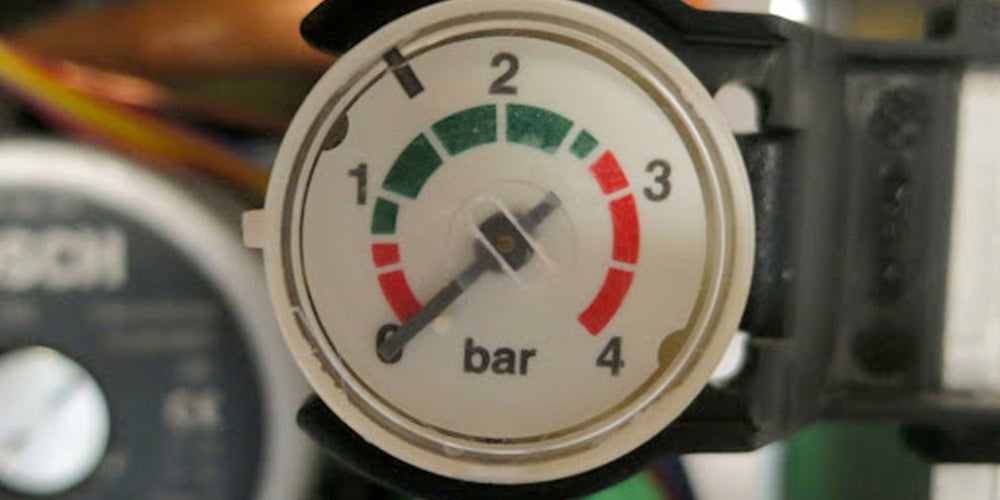

- Verify the symptom: Ask how often they top up and whether it drops more when hot or cold. Check the gauge cold (should be around 1–1.5 bar for most systems).
- Visual sweep: Look for any dampness around the boiler, PRV discharge pipe, condensate, radiator valves, and obvious joints. Run your hand over suspect areas — even slight moisture counts.
- Pressure test: Repressurise to the correct cold setting and monitor for 30–60 minutes with the system off, then again after a heating cycle. Rapid drop points to a leak; swing between hot/cold suggests the vessel.
- Test the PRV: Check for continuous drip. If suspect, isolate and replace (straightforward on most models).
- Check the expansion vessel: Use a tyre gauge on the Schrader valve (system cold and depressurised). No pressure or water spitting out means it needs repressurising or replacement.
- Rule out bleeding/air: If recent bleeding, simply top up and observe. For persistent cases, consider a system check for air ingress or inhibitor levels.
Work methodically — jumping straight to “there must be a leak somewhere” often leads to missed vessel or valve faults.
Key Takeaways
- Most pressure loss stems from small leaks or normal maintenance like bleeding — easy to fix once identified.
- Recurring drops after repressurising usually mean a PRV or expansion vessel problem rather than a mystery pipe leak.
- Proper diagnosis saves repeat visits and keeps customers happy.
Low pressure isn’t usually dramatic — it’s the slow, nagging fault that rewards the engineer who checks the obvious components first instead of chasing ghosts in the pipework.
